Metal Mesh Large-Format Touch Films

ABC10, ABC12, ABC16 and AB16 are documented structures for DRWO large-format capacitive touch films. Model selection and production specifications are confirmed against the actual size, cover structure, controller and interference environment.

ABC10three-layer PET · 10 μm

ABC12three-layer PET · 12 μm

ABC16three-layer PET · 16 μm

AB16two-layer PET · 16 μm

Real Metal Mesh touch-film products and production detail

DRWO’s actual large-format transparent touch films, FPC electrode connections and ultra-fine-wire patterns photographed during production.

DRWO large-format transparent Metal Mesh capacitive touch film with FPC electrode connections — Large-format transparent Metal Mesh touch film with FPC connection

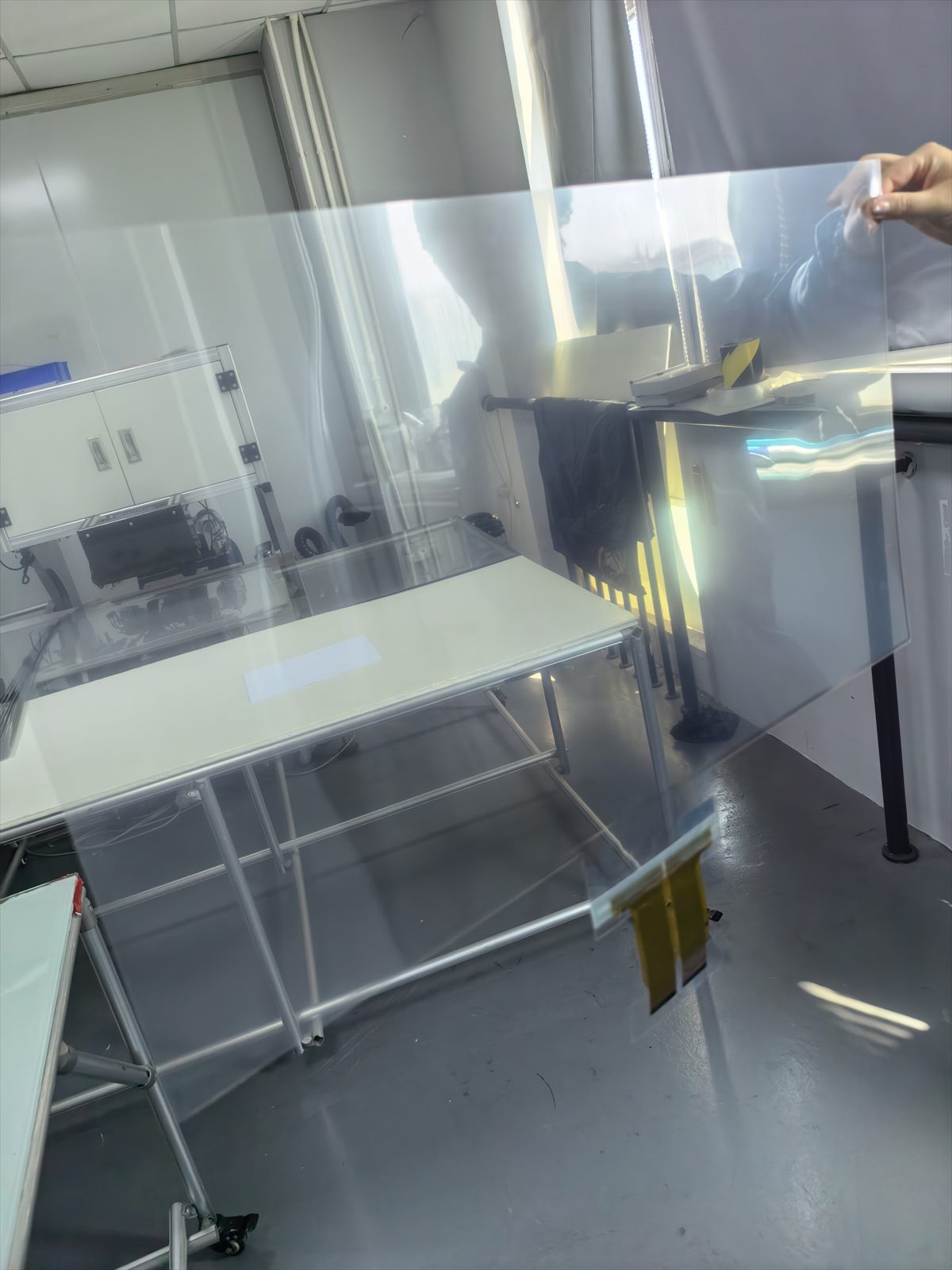

DRWO finished large-format transparent capacitive touch film held for optical inspection — Finished transparent touch film during product inspection

Close-up of the ultra-fine-wire sensing pattern on a DRWO Metal Mesh touch film — Ultra-fine-wire sensing pattern · production close-up

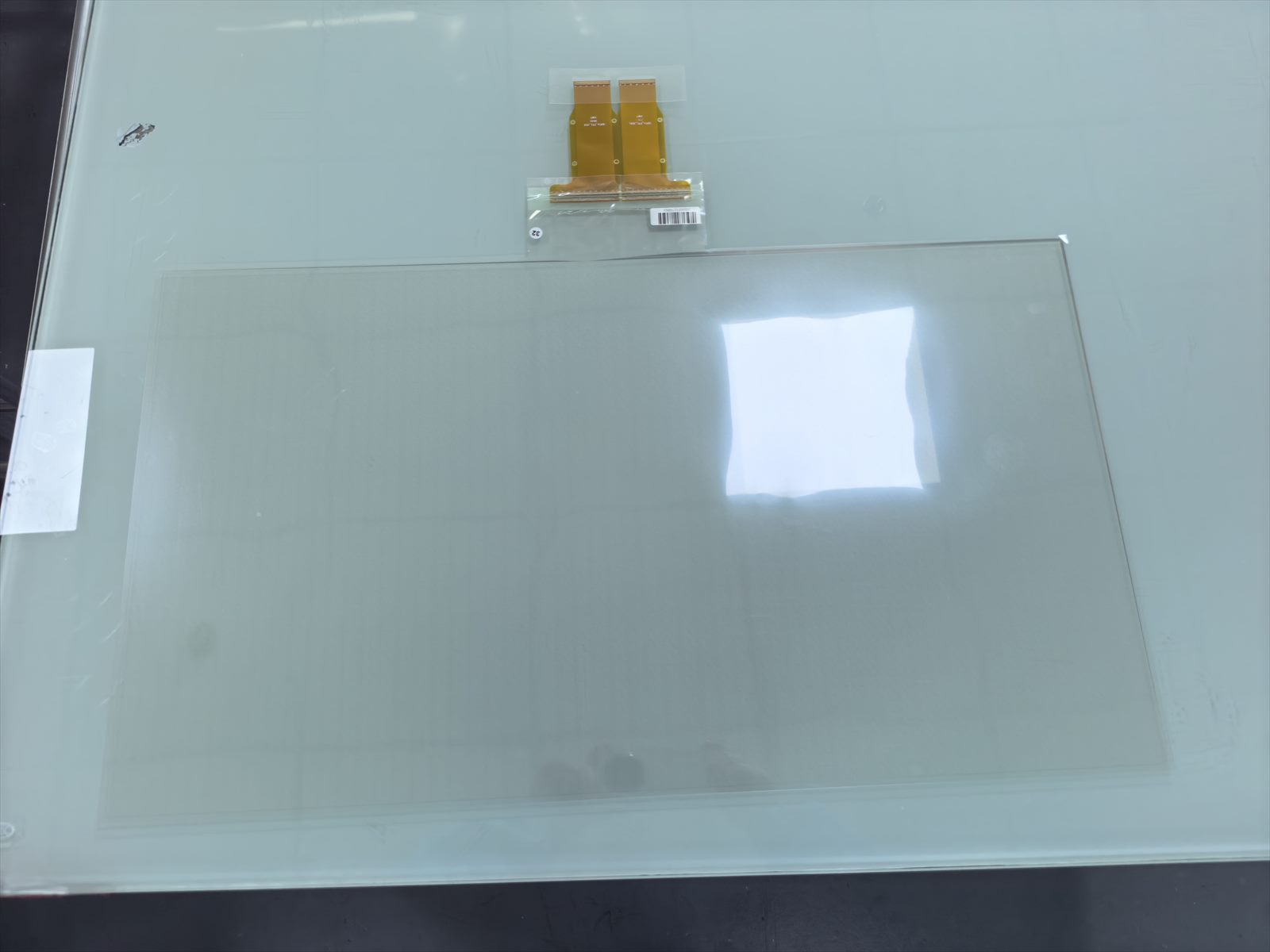

DRWO Metal Mesh touch-film sample showing the transparent active area and paired FPC electrode tails — Transparent active area and paired FPC electrode tails

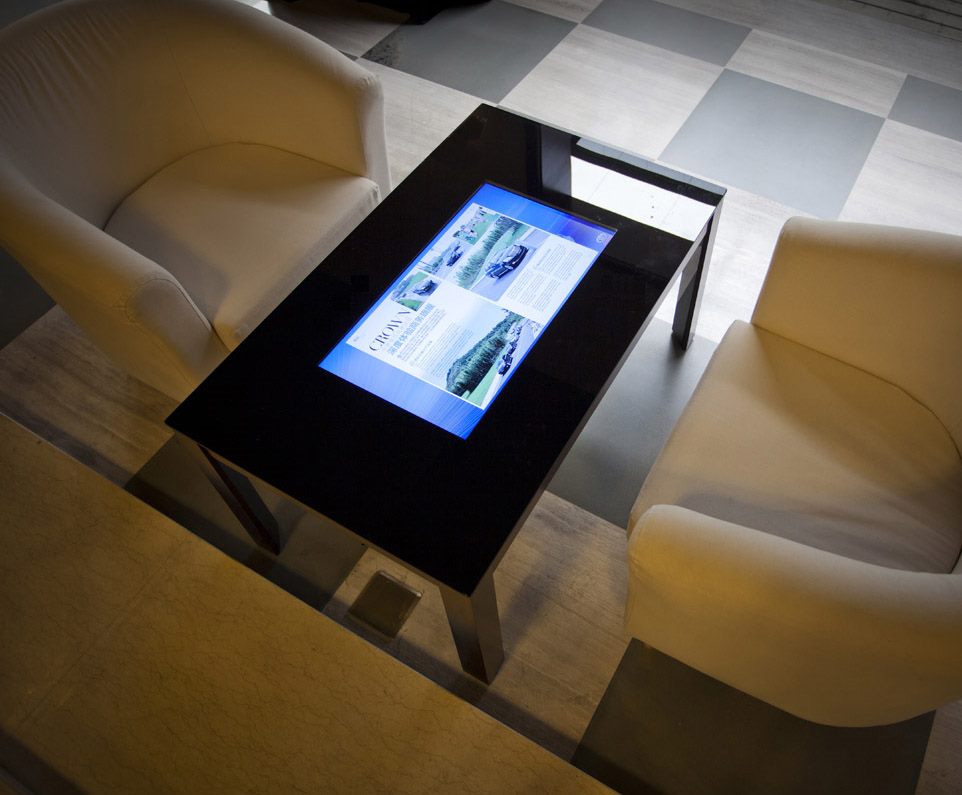

Interactive touch table application using a large-format transparent Metal Mesh capacitive touch sensor — Large-format capacitive touch application · interactive table

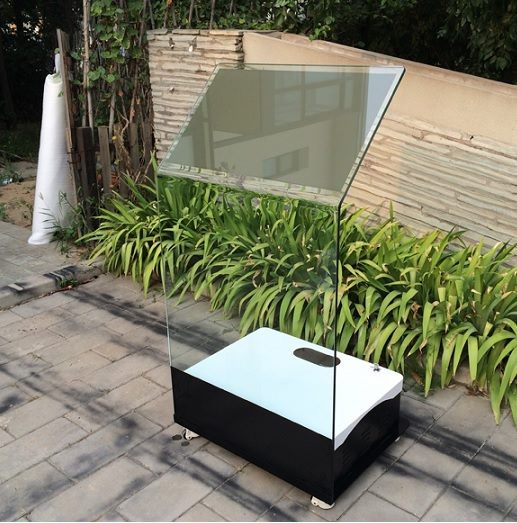

Outdoor transparent interactive display application for large-format Metal Mesh touch sensing — Transparent outdoor interactive display application

Application directions

Metal Mesh can be evaluated for transparent, large-format and non-standard projected-capacitive sensing interfaces.

Large-format touch films
Touch-panel sensing layers
Projected-capacitive buttons
Interactive commercial and industrial displays
Custom-shaped sensing regions
Project-specific presence or security sensing

Project confirmation

The documented models are a technical starting point, not a universal drop-in component.

Active area and overall dimensions
Cover material and complete stack-up
Controller and interface requirements
Grounding and interference environment
Optical target and inspection standard
Quantity, sample plan and delivery terms

Important project note

CE, RoHS and UL certificates apply only to the products and scope identified in each document. They do not represent all DRWO products.

Discuss a functional film project

Tell us the application, dimensions, material stack-up and estimated quantity.

Submit an inquiry
